200 Predicts per Second
AI FootBall RobotKeeper
Intelligent goalkeeper robot (RobotKeeper / RoboKeeper) is designed for football shooting against indoor/outdoor entertainment/training experience.
Zhengmai Technology’s intelligent goalkeeper robot (RobotKeeper / RoboKeeper) is designed for football shooting against indoor/outdoor entertainment/training experience. The system tracks and analyzes the running track of the football in real time using machine vision, and predicts the position of the football’s falling point at high speed (can reach to more than 60~200 predicts per second), and controls the rotating mechanical goalkeeper to run to the specified position at high speed, thereby achieving the effect of blocking the shooting football.
AI ROBOTKEEPER – Advantages
8 Years – 6 Gens:
Following eight years of iterative refinement, our goalkeeper robot product has undergone six major generational updates and upgrades.
Stable Systems – > 1200000 saves for one RoboKeeper:
The system is stable, reliable, and easy to maintain, boasting a long designed service life; indeed, one client’s unit has already achieved a record of over 1.2 million saves.
Global Clients Choices:
The robot features an entirely English-language interface to facilitate ease of use for a global audience and has been in continuous operation across numerous countries worldwide.
Remote Sessions with Immediate Diagnostics:
Furthermore, we offer comprehensive remote technical support globally. Our team of expert technicians is fluent in English; provided the robot is connected to the internet, we can perform immediate remote diagnostics and troubleshooting to ensure that clients—regardless of their location on Earth—can fully utilize our advanced RoboKeeper equipment.
AI RobotKeeper Basic Version
AI RobotKeeper Basic Version (Use for Entertainment / Education / Indoor)
USD $17000.00 (One-year warranty)
USD $18500.00 (Two-year warranty with Extra Spares)
Contact US for the Details
sales@zimasys.com
+86 21 51619870
Description
Robot Goalkeeper Height: About 1.5 meters;
Goal Size Recommend: 2.8m wide x 1.5m high;
Robot Arm Baffle:Patented Board;
Baffle Life: Warranty 3 months or 10000 times;
Motion Mechanism: Industrial grade servo motor;
~2.5 kw AC servo motor with Industrial grade servo drive;
The motor is the same series of the standard one, they are almost look the same, just the length of the motor has about 2-4cm shorter than the standard motor;
Visual System: Zhengmai customized camera Made in China, predict about 60 photos per second;
Environmental Adaptability: Indoor, no strobe light, uniform lighting;
Computer processing unit: High performance computer, With power-save Gen11-CPU, 8G RAM, 256G SSD;
Safety protection function: Motion Controller Security Policy, E-STOP Industrial Grade Safety Management;
Hit Accuracy: The AI success rate is about 70 % or more;
Expected Design Life: 10+ years;
.
Site-Preparation
Minimum site requirements: Length, Width and Height 6 * 3 * 3 meters;
Recommended site requirements: length, width and height 10 * 4 * 4 meters.
Goal size: Width (2.6) * Height (1.5) meters.
Power demand: 5KW 220VAC with Ground cable.
Environment: A place protected from rain.
Warranty
One-year warranty and more choice.
High speed ball blocking system: warranty
High-speed sphere tracking sensor: warranty
Embedded real-time controller: warranty
Cables: warranty
System control software: free upgrade within three years, free remote technical support within three years
Control host (computer): guaranteed by the supplier (Dell, Lenovo or HP, etc.) according to relevant national policies
Robot Goalkeeper image stickers, goalkeeper bar, goal, football, net: for consumables, a certain number of spare parts are provided with the entire set of equipment.
AI RobotKeeper Standard Version
AI RobotKeeper Standard Version (Use for Entertainment / Training / Education / Indoor&Outdoor)
USD $22500.00 (One-year warranty)
USD $25000.00 (Two-year warranty with Extra Spares)
Contact US for the Details
sales@zimasys.com
+86 21 51619870
Description
Robot Goalkeeper Height: About 1.5 meters;
Goal Size Recommend: 2.8m wide x 1.5m high;
Robot Arm Baffle:Patented Board;
Baffle Life: Warranty 3 months or 10000 times;
Motion Mechanism: Industrial grade servo motor;
~4.0 kw AC servo motor with Industrial grade servo drive;
The motor is the same series of the standard one, they are almost look the same, just the length of the motor has about 2-4cm shorter than the standard motor;
Visual System: Commercial high-speed camera, Made in USA, capture about 100 photos per second;
Environmental Adaptability: Can be used indoors or outdoors;
Computer processing unit: High-performance gaming-grade computer, With Intel i5/i7 H-series or AMD R5/R7 H-series CPU, at least 8G RAM, 256G SSD, Nvidia GTX-1060/RTX-3050/… Game-Level graphics card.;
Safety protection function:
AI Safety security policy
Motion Controller Security Policy
E-STOP Industrial Grade Safety Management;
Hit Accuracy: The AI success rate is about 90 % or more;
Expected Design Life: 10+ years;
.
Site-Preparation
Minimum site requirements: Length, Width and Height 6 * 3 * 3 meters;
Recommended site requirements: length, width and height 10 * 4 * 4 meters.
Goal size: Width (2.6) * Height (1.5) meters.
Power demand: 5KW 220VAC with Ground cable.
Environment: A place protected from rain.
Warranty
One-year warranty and more choice.
High speed ball blocking system: warranty
High-speed sphere tracking sensor: warranty
Embedded real-time controller: warranty
Cables: warranty
System control software: free upgrade within three years, free remote technical support within three years
Control host (computer): guaranteed by the supplier (Dell, Lenovo or HP, etc.) according to relevant national policies
Robot Goalkeeper image stickers, goalkeeper bar, goal, football, net: for consumables, a certain number of spare parts are provided with the entire set of equipment.

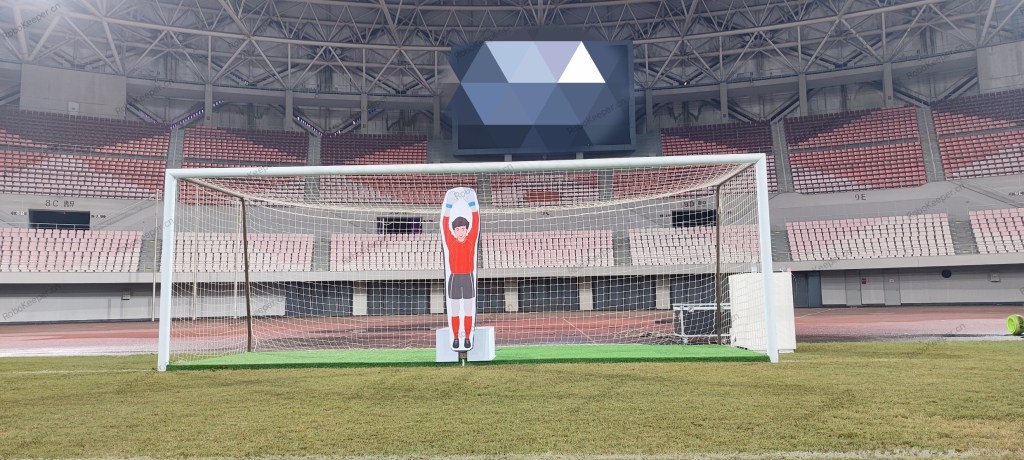

(Please check the video below, Our large-scale goalkeeper robot collaborated with the famous Chinese blogger He Tongxue HTX at the Hangzhou Asian Games stadium.)
AI RobotKeeper Big Version
AI RobotKeeper Big Version (Use for Entertainment / Training / Education / Indoor&Outdoor)
USD $28000.00 (One-year warranty)
USD $31000.00 (Two-year warranty with Extra Spares)
Contact US for the Details
sales@zimasys.com
+86 21 51619870
Description
Robot Goalkeeper Height: About 2.0 meters;
Goal Size Recommend: 3.8m wide x 2.0m high;
Robot Arm Baffle:Patented Board;
Baffle Life: Warranty 3 months or 10000 times;
Motion Mechanism: Industrial grade servo motor;
~6.0 kw AC servo motor with Industrial grade servo drive;
The motor is the same series of the standard one, they are almost look the same, just the length of the motor has about 2-4cm shorter than the standard motor;
Visual System: Commercial high-speed camera, Made in USA, capture about 100 photos per second;
Environmental Adaptability: Can be used indoors or outdoors;
Computer processing unit: High-performance gaming-grade computer, With Intel i5/i7 H-series or AMD R5/R7 H-series CPU, at least 8G RAM, 256G SSD, Nvidia GTX-1060/RTX-3050/… Game-Level graphics card.;
Safety protection function:
AI Safety security policy
Motion Controller Security Policy
E-STOP Industrial Grade Safety Management;
Hit Accuracy: The AI success rate is about 90 % or more;
Expected Design Life: 10+ years;
.
Site-Preparation
Minimum site requirements: Length, Width and Height 10 * 4 * 3 meters;
Recommended site requirements: length, width and height 12 * 5 * 5 meters.
Goal size: Width (3.8) * Height (2.0) meters.
Power demand: 6KW 380VAC L1/L2/L3 with Ground cable.
Environment: A place protected from rain.
Warranty
One-year warranty and more choice.
High speed ball blocking system: warranty
High-speed sphere tracking sensor: warranty
Embedded real-time controller: warranty
Cables: warranty
System control software: free upgrade within three years, free remote technical support within three years
Control host (computer): guaranteed by the supplier (Dell, Lenovo or HP, etc.) according to relevant national policies
Robot Goalkeeper image stickers, goalkeeper bar, goal, football, net: for consumables, a certain number of spare parts are provided with the entire set of equipment.

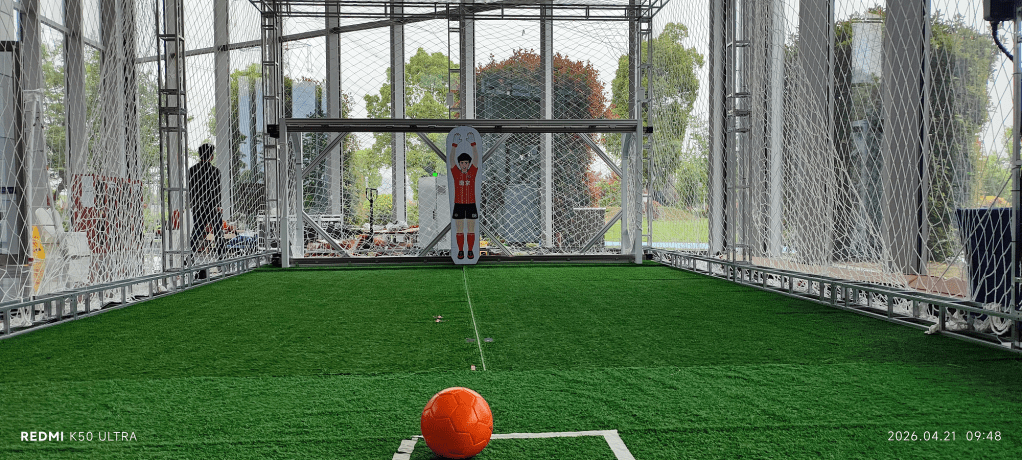

AI RobotKeeper Big Slider Version
AI RobotKeeper Slider Version (Use for Entertainment / Training / Education / Indoor&Outdoor)
like: Mark Rober attempts to train as a professional soccer player with Landon Donovan before engineering a high-speed robotic goalkeeper. This robot uses advanced tracking cameras and powerful motors to compete against skilled human shooters, preparing for a ultimate showdown against Cristiano Ronaldo.
However, we do not require as many cameras; the manufacturing cost is significantly lower, and—by utilizing industrial-grade high-speed linear guides—the system is far more robust and durable.
https://www.youtube.com/watch?v=jjpjjcMeujM
USD $58000.00 (One-year warranty)
USD $60000.00 (Two-year warranty with Extra Spares)
Contact US for the Details
sales@zimasys.com
+86 21 51619870
Description
Robot Goalkeeper Height: About 2.0~2.3 meters;
Goal Size Recommend: 4.0~7.4m wide x 2.0~2.3m high;
Robot Arm Baffle:Patented Board;
Baffle Life: Warranty 3 months or 10000 times;
Motion Mechanism: Industrial grade servo motor;
~20.0 kw AC servo motors with High Performance Industrial grade servo drives;
The motor is the same series of the standard one, they are almost look the same, just the length of the motor has about 2-4cm shorter than the standard motor;
Visual System: Commercial high-speed camera, Made in USA, capture about 100 photos per second; or Commercial high-speed camera, Made in Zimasys, capture about 200 photos per second;
Environmental Adaptability: Can be used indoors or outdoors;
Computer processing unit: High-performance gaming-grade computer, With Intel i5/i7 H-series or AMD R5/R7 H-series CPU, at least 8G RAM, 256G SSD, Nvidia GTX-1060/RTX-3050/… Game-Level graphics card.;
Safety protection function:
AI Safety security policy
Motion Controller Security Policy
E-STOP Industrial Grade Safety Management;
Hit Accuracy: The AI success rate is about 90 % or more;
Expected Design Life: 10+ years;
.
Site-Preparation
Minimum site requirements: Length, Width and Height 12 * 5 * 4 meters;
Recommended site requirements: length, width and height 15 * 8 * 5 meters.
Goal size: Width (4.0~7.4m) x Height (2.0~2.3m) meters.
Power demand: 22KW 380VAC L1/L2/L3 with Ground cable.
Environment: A place protected from rain.
Warranty
One-year warranty and more choice.
High speed ball blocking system: warranty
High-speed sphere tracking sensor: warranty
Embedded real-time controller: warranty
Cables: warranty
System control software: free upgrade within three years, free remote technical support within three years
Control host (computer): guaranteed by the supplier (Dell, Lenovo or HP, etc.) according to relevant national policies
Robot Goalkeeper image stickers, goalkeeper bar, goal, football, net: for consumables, a certain number of spare parts are provided with the entire set of equipment.

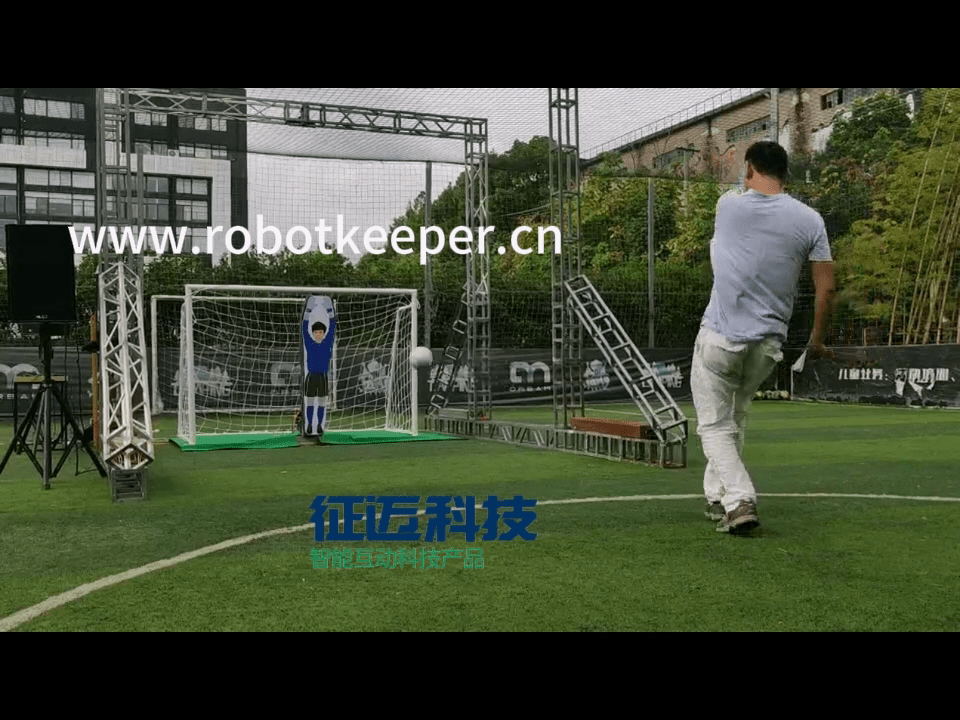

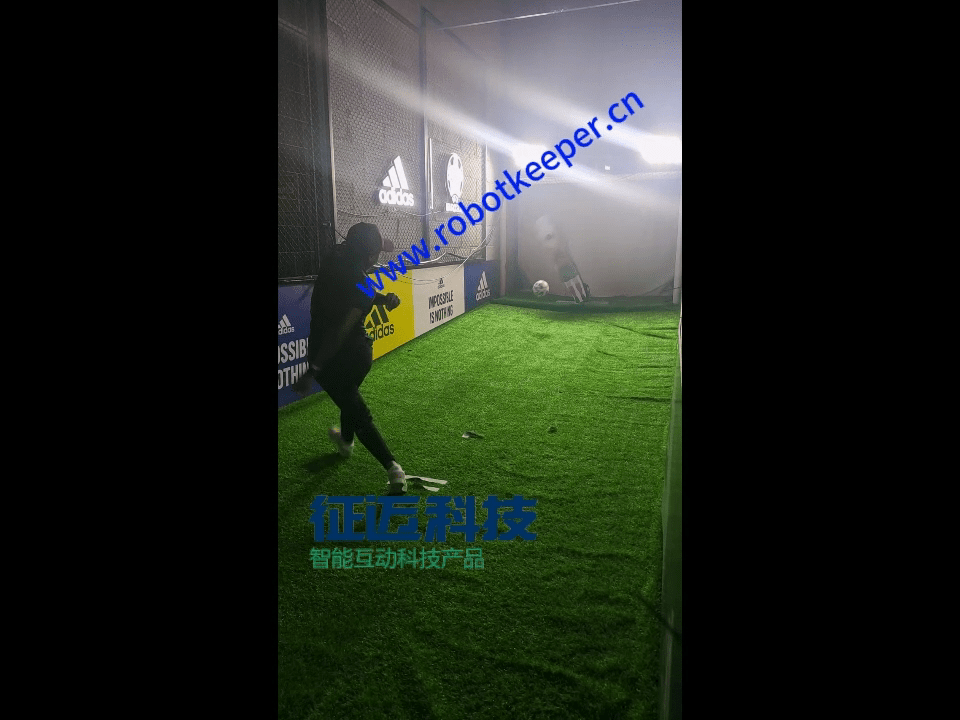

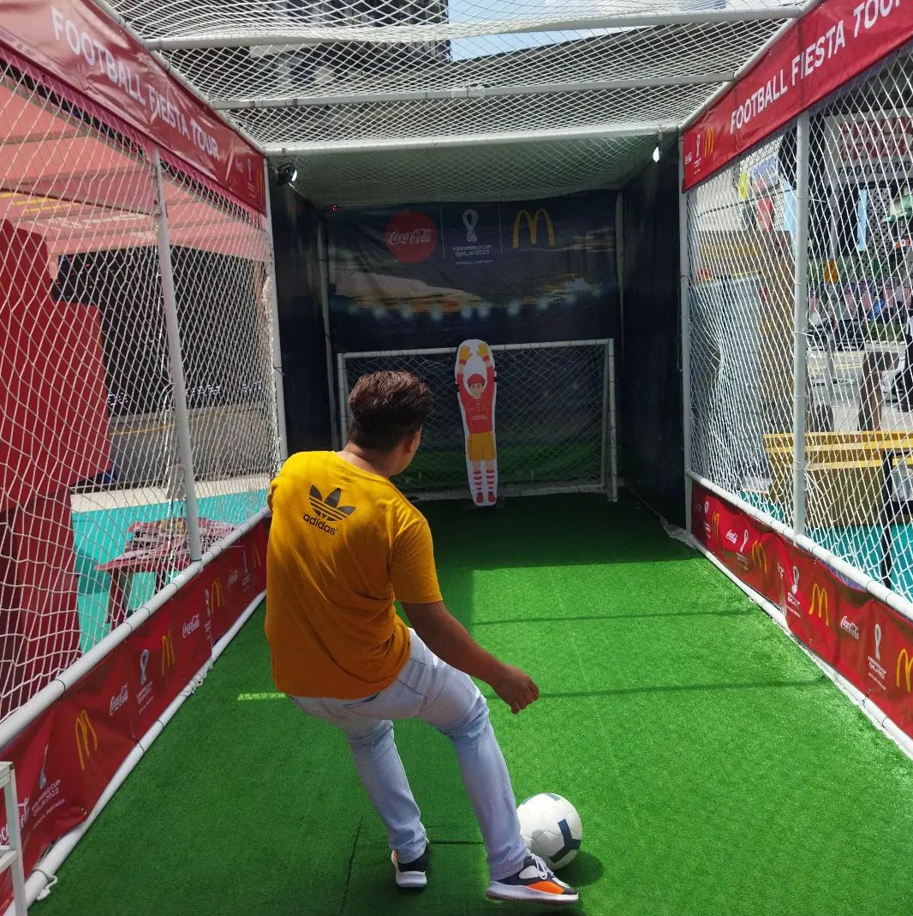

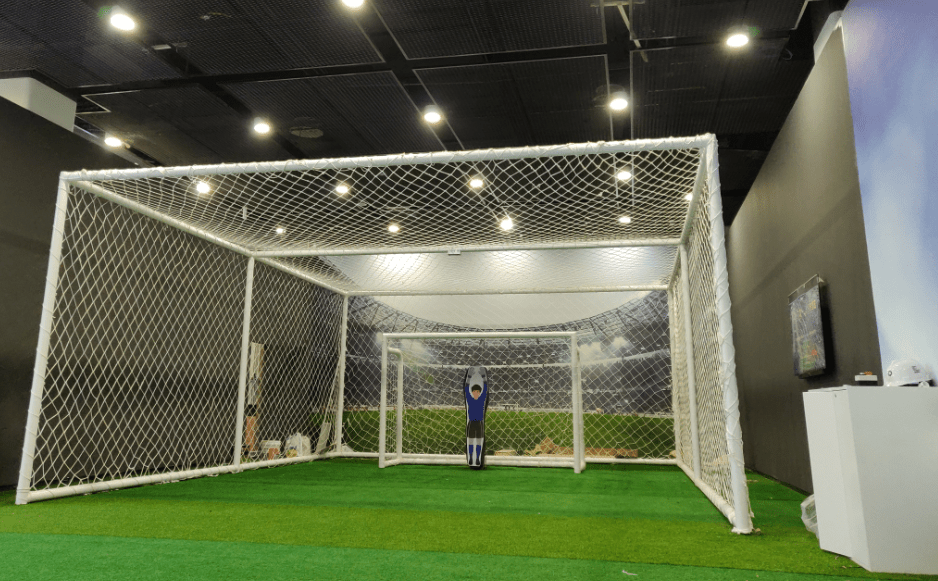

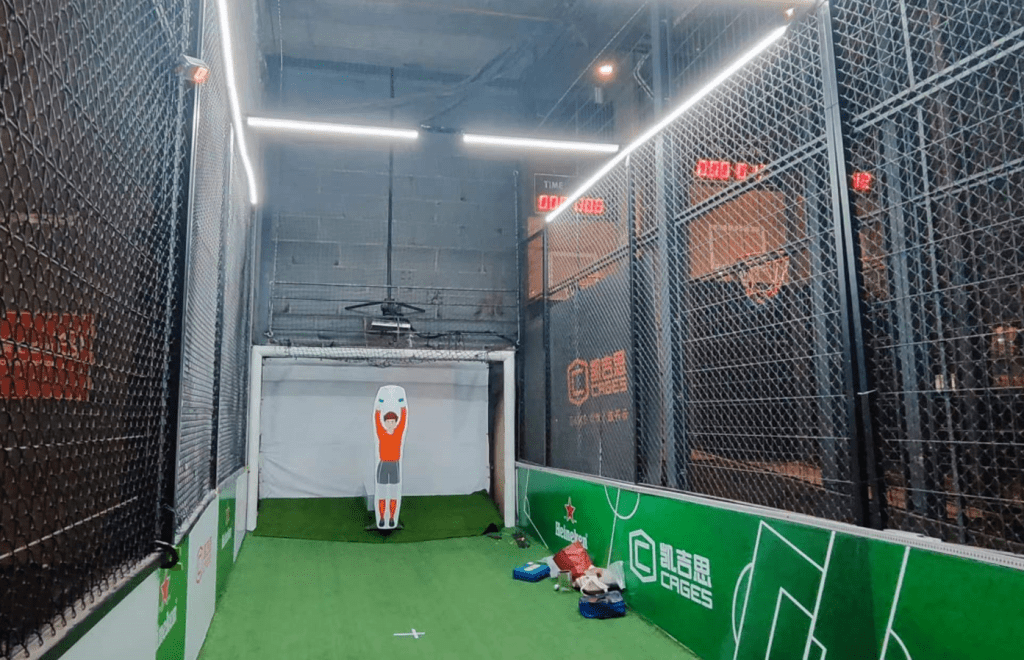

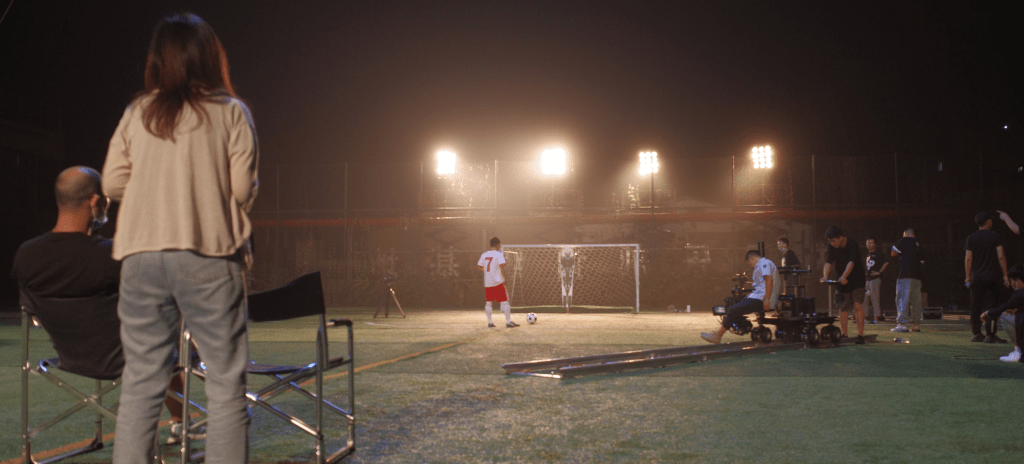

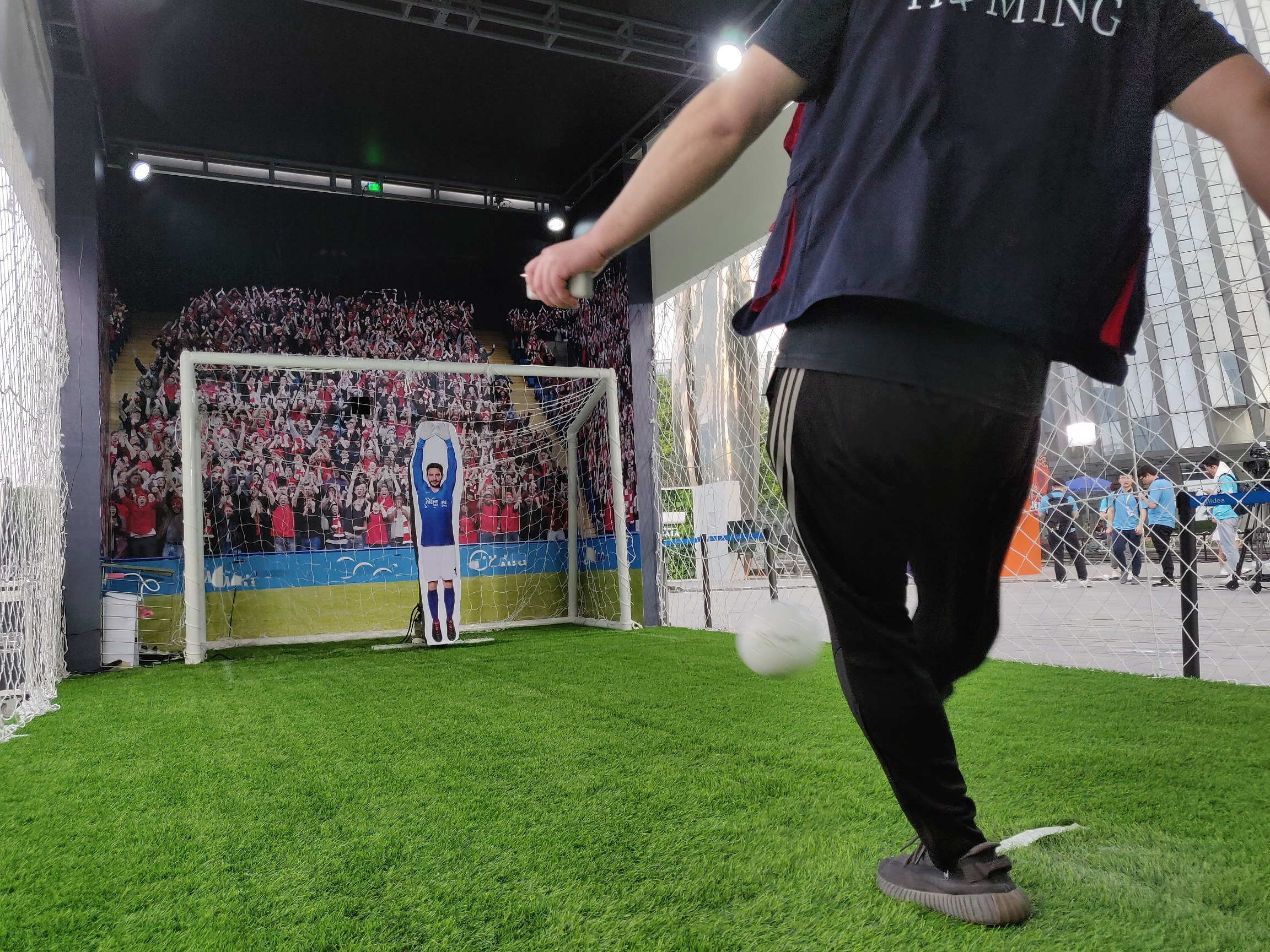

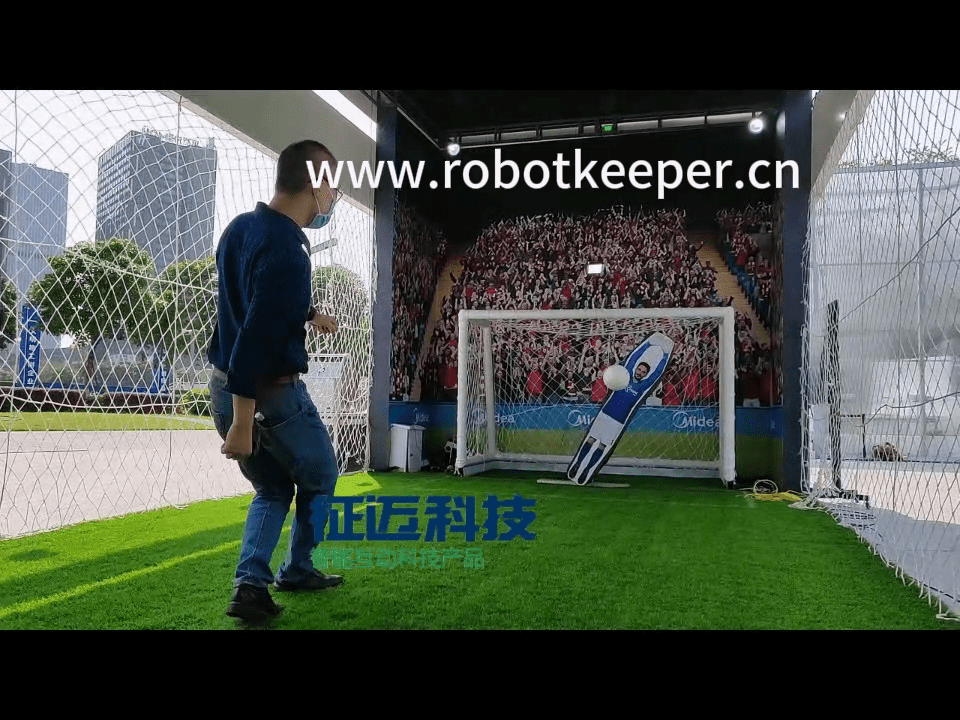

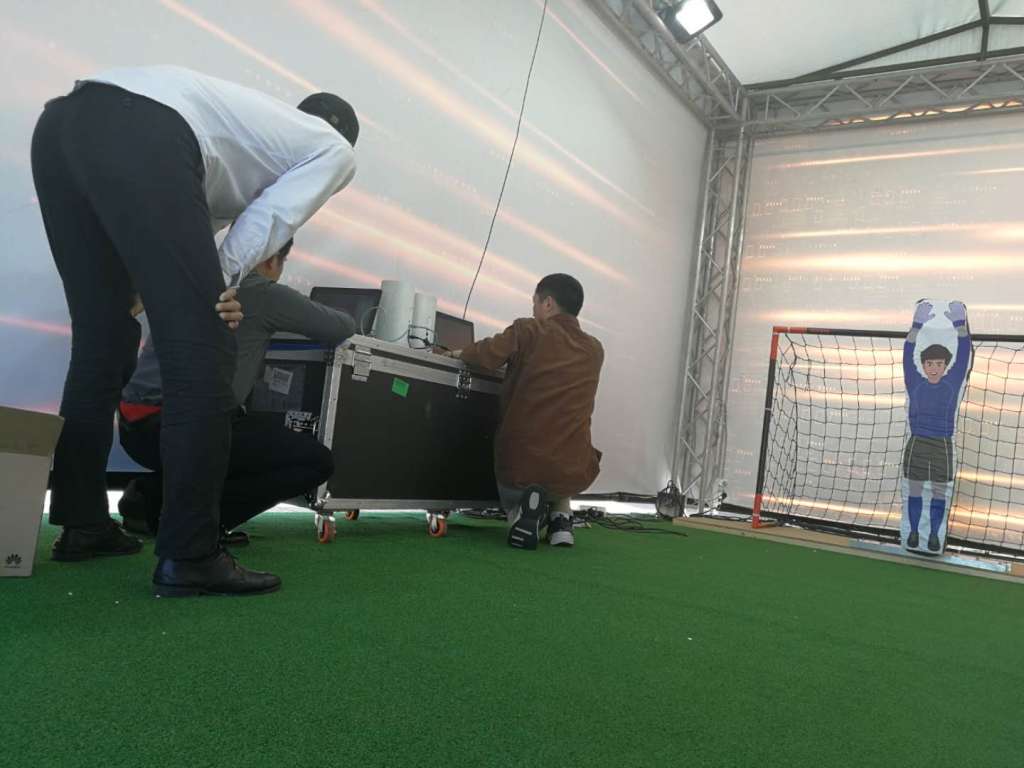

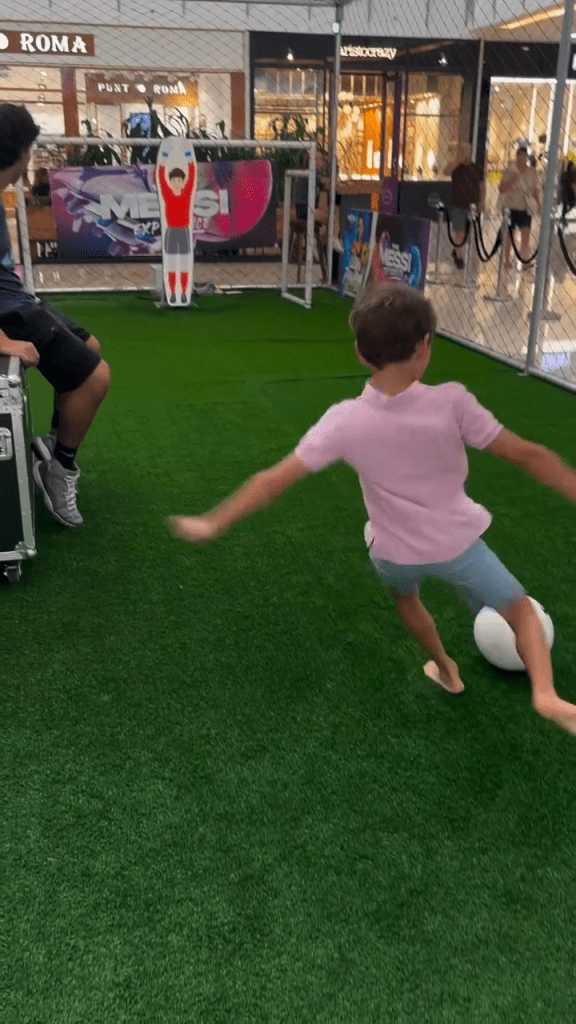

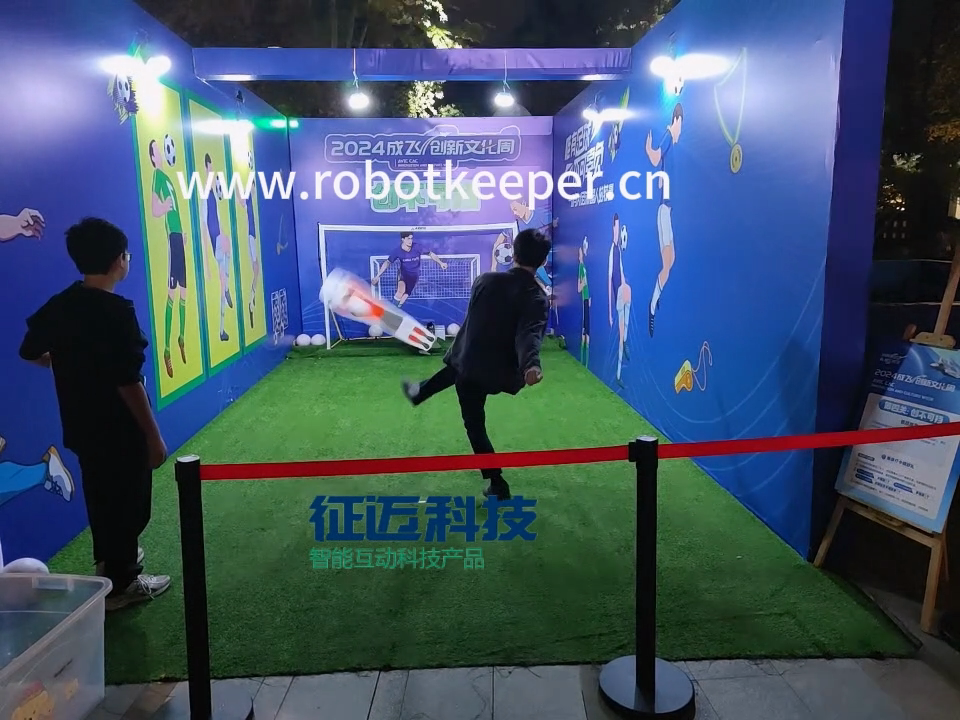

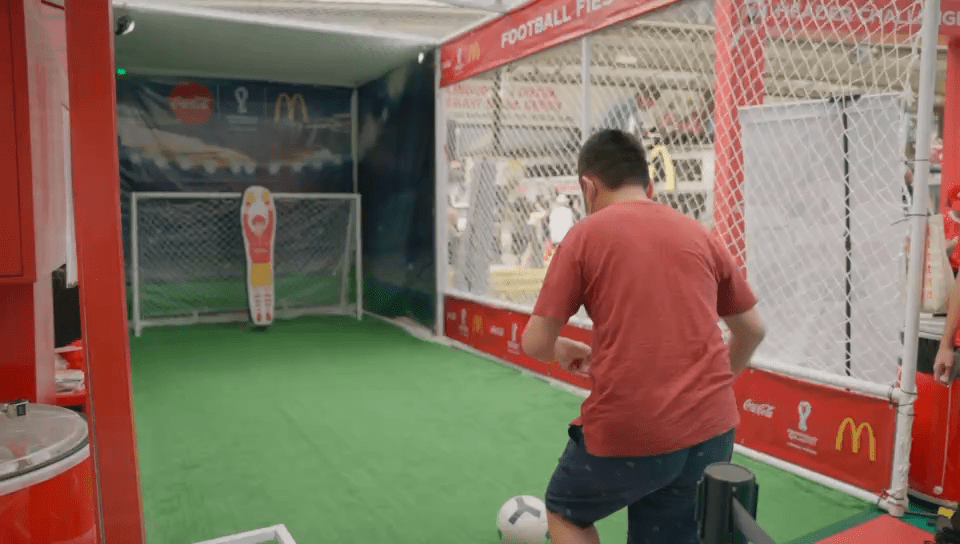

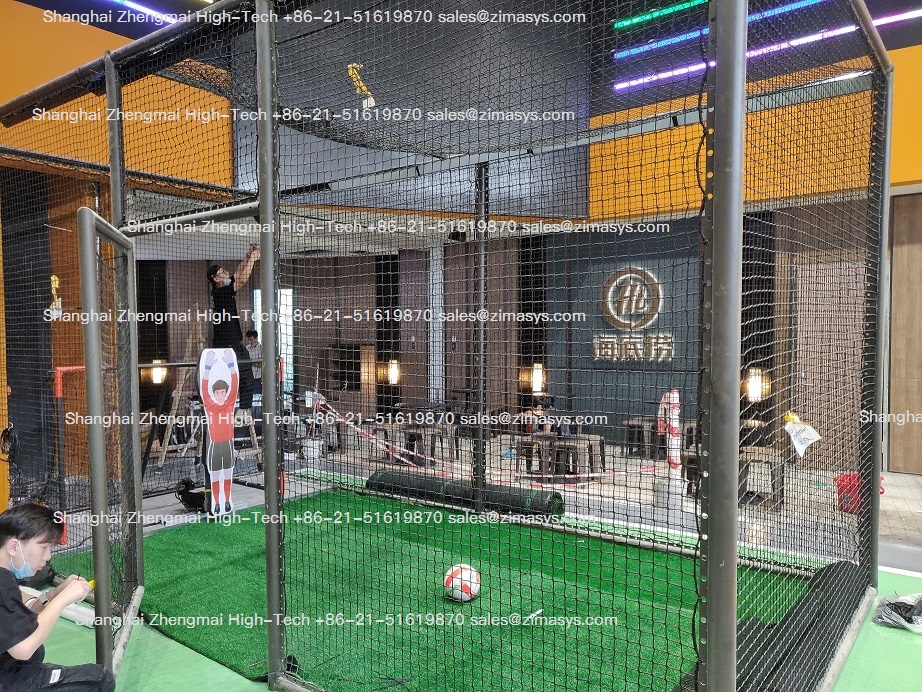

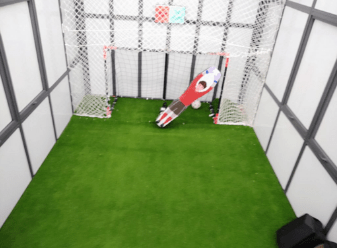

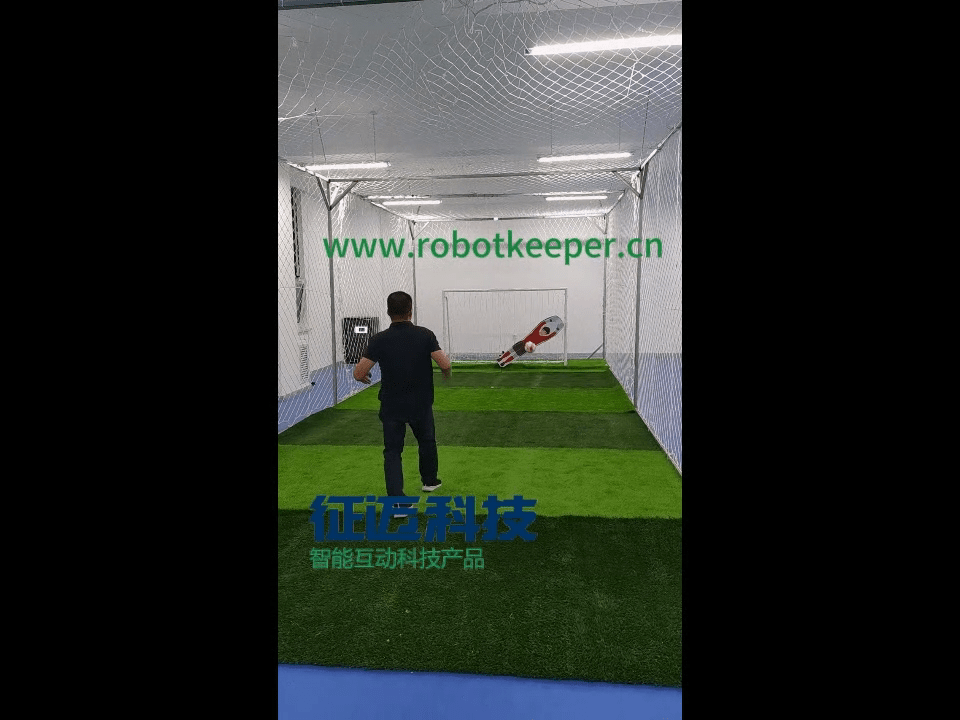

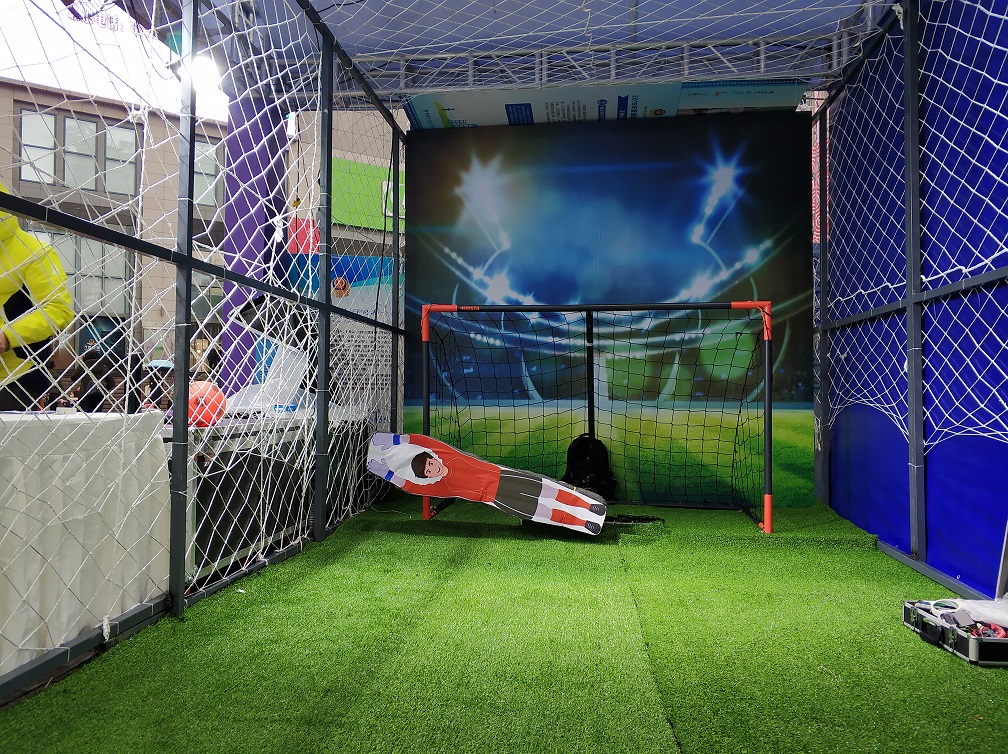

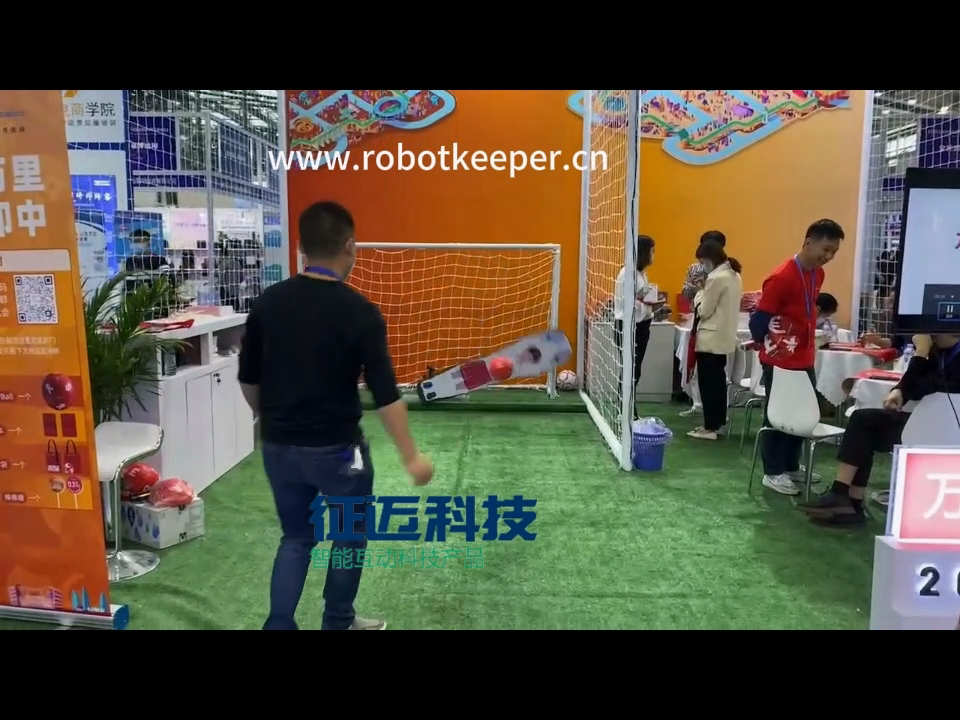

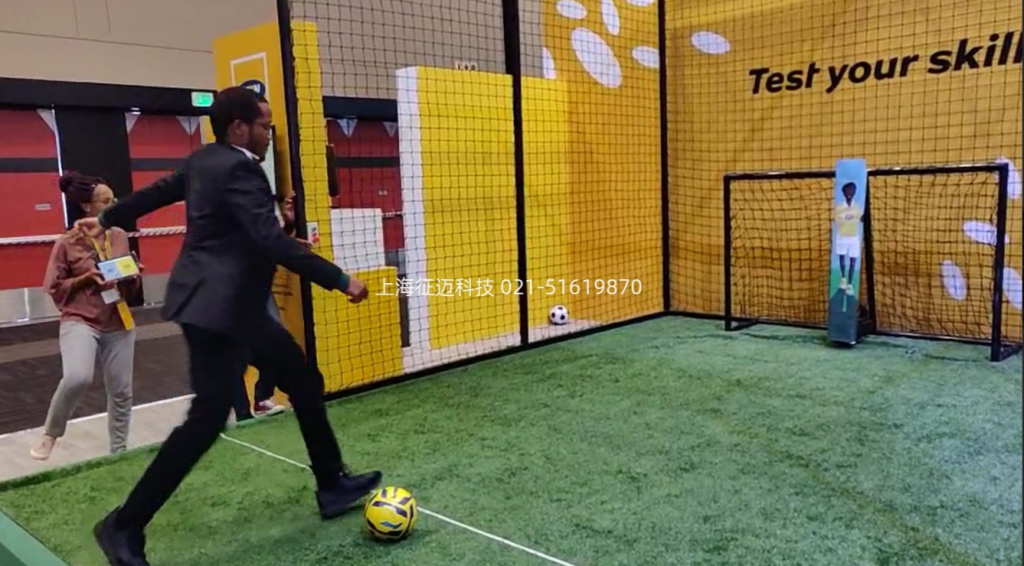

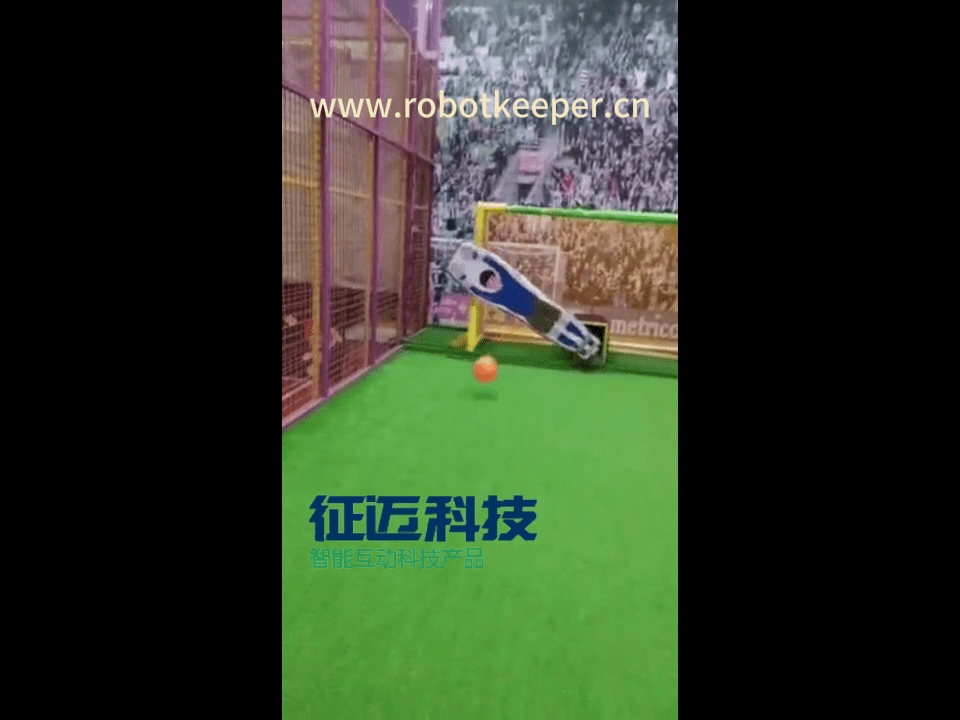

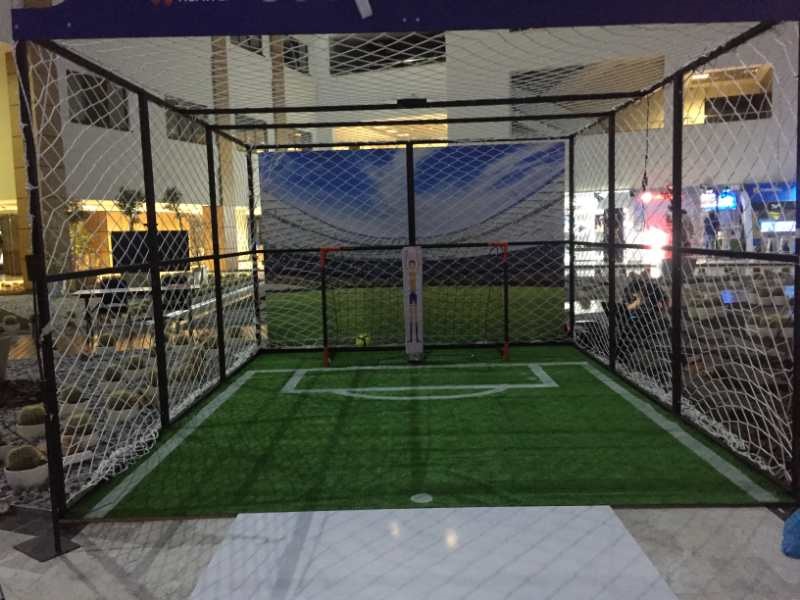

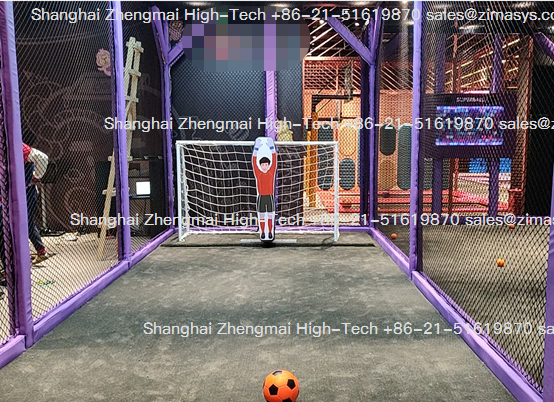

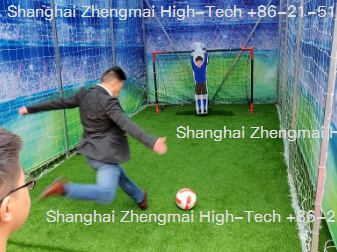

AI ROBOTKEEPER – USER CASES
8 Years – 6 Gens:
Following eight years of iterative refinement, our goalkeeper robot product has undergone six major generational updates and upgrades.
Stable Systems – > 1200000 saves for one RoboKeeper:
The system is stable, reliable, and easy to maintain, boasting a long designed service life; indeed, one client’s unit has already achieved a record of over 1.2 million saves.
Global Clients Choices:
The robot features an entirely English-language interface to facilitate ease of use for a global audience and has been in continuous operation across numerous countries worldwide.
Remote Sessions with Immediate Diagnostics:
Furthermore, we offer comprehensive remote technical support globally. Our team of expert technicians is fluent in English; provided the robot is connected to the internet, we can perform immediate remote diagnostics and troubleshooting to ensure that clients—regardless of their location on Earth—can fully utilize our advanced RoboKeeper equipment.
“We spend many years R&D to make you have a nice kick to goal 🙂 ”
Welcome to contact us : +86 21 51619870 / sales@zimasys.com
